Double Coupler Drop Forged

Load bearing coupler incorporative captive "T" bolts used to connecting two scaffold tubes at right angles. Galvanized, App. Weight: 1000 gms.

Swivel Coupler Drop Forged

Load bearing coupler of rugged design incorporating captive "T" bolts for connecting two scaffold tubes at any angle. Galvanized

Drop Forged Putlog Coupler

Coupler for connecting transoms and Putlog to ledgers. Galvanized, App. Weight 550 gms

Double Coupler Pressed

Used to connect two scaffolding tubes at right angles. These are critical components in the scaffolding structure and must be load bearing to resist both slip and distortion. Zinc Plated, App. Weight: 550 gms.

Swivel Coupler Pressed

Used to connect two scaffolding tubes at any angle. These are key components in the structure and must be load bearing. Zinc Plated, App. Weight: 550 gms.

Put lock Coupler Pressed

Coupler for connecting transoms and Putlog to ledgers. Zinc Plated, App. Weight: 550 gms.

Board Retaining Coupler

A simple and very effective method of holding down scaffold boards to avoid lifting by unauthorized personal or the wind. Galvanized

Steel Waller Clamp K6

Walling Clamp used to connect timber studs to soldiers

Base Adapter

120 mm x 120 mm steel plate providing a full bearing surface for load distribution from vertical.

Gravel Lock Gider Coupler

Designed to clamp on girders with a half coupler attached for the fixing of standard scaffold tube.

Base Plate

120 mm x 120 mm x 4 mm Steel Plate Providing a full bearing surface for load distribution from vertical

Drop Head Wedge Blade

Drop Forged

Sleev Coupler Pressed

For fixing two tubes end to end, recommended for all horizontal and diagonal connections. Each of two tubes can be released separately.

Adj. Fork Head

120 mm x 120 mm x 6 nun plate

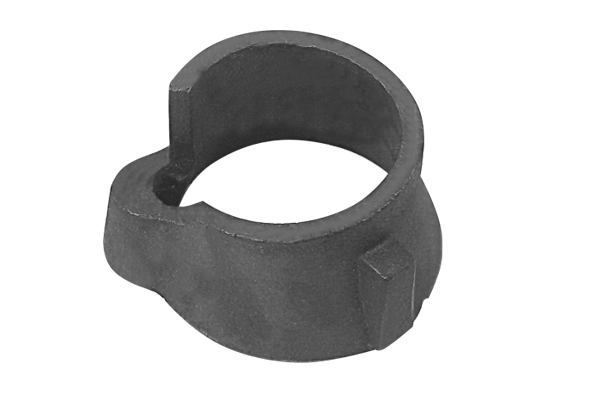

Top Cup

Material: Malleable cast iron/Drop Forged grade B-3512, Ultimate Tensile strength of base metal: 35Kgs/mm2, Type: 3 lug Finish: Self Color

Drop Head

The most important pad of the shuttering is the drop head. The drop heads allow the beams, infills and panels to be lowered at a hammer stroke.

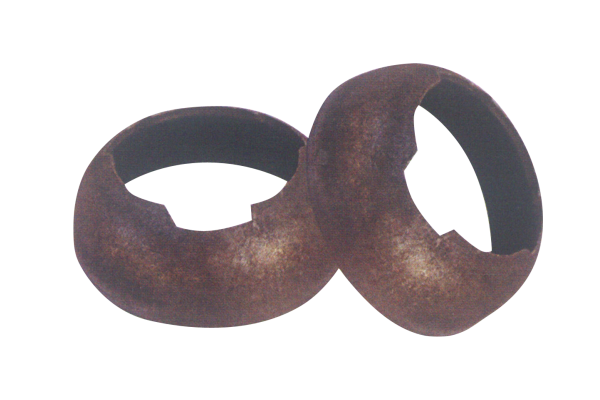

Bottom Cup

Material: Cold Rolled Tested Low Carbon Mild Steel Plate
Thickness: 5 mm
Finish: Self Color

Ledger Blade

Material: Drop Forged Graded Low Carbon Mild Steel Round
Finish: Self Color

Universal Clamp

These devices are used for soldier wall shuttering system; the universal clamp is used to fasten the aluminium studs to the soldiers

Universal Jack

Universal Jack allows differences in height to be maintained

Prop Jack Heavy Duty

Waller Clamp

Walling Clamp used to connect timber studs to soldiers. Pinted zinc Plated

Timber Waller Clamp

Walling Clamp used to connect timber studs to soldiers

Jack nut HD

Galvanized - Drop Forged

Rapid Clamp

It provides cheap and effective clamping system that has no nuts or bolts and leaves no expensive ties in the concrete

Water Stopper

Cast element used as connector between two tie rods, which prevents water seepage due its central disk. Zinc Plated

Props Sleev Nut HD

L - 230 mm, thk 3.D mm, LD Nut & Roll threaded Sleev

Wing Nut

Cast nut with lever arm action used counter plate for all soldiers or waling applications. Zinc Plated

Snap Lock H & L

Snap Lock - H 16 mm
Snap Lock - L 12 mm

Props Sleev Nut LD

L - 230 mm, thk 3.8 mm, HD Nut & Roll threaded Sleev

The Plate

A simply heavy duty zinc plated.
Available thickness: 5 mm, 6 mm, 8 mm

Plastic Cone

20 mm Cone

H2O Beam

125 cm, 265 cm, 290 cm, 450 cm

Plastic Sleev

18 mm ID x 2 mm Sleev

The Rod

6 mtr Length, 16 mm Thl H

Flower Plate

A simply heavy duty self finish 120x120x5 mm. 120x120x6 mm

Wooden Planks

38 mm Thk X 225 mm Width 3.9 mtr Length, Available 2 mtr, 2.5 mtr

Props Sleev with Nut HD

L-230 mm, Thk - 3.8 mm HD Nut & Roll Threaded Sleev

Steel Planks

38 mm x 225 mm x 3 mtr

Props Sleev with Nut LD

L-230 mm, Thk - 3 mm LD Nut & Roll Threaded Sleev

Aluminium Beam K6

Available : 100, 150, 200, 250, 300, 350, 400, 450, 500, 550 ,600 Cm with Timber

Steel Planks

38 mm x 225 mm x 3 mtr

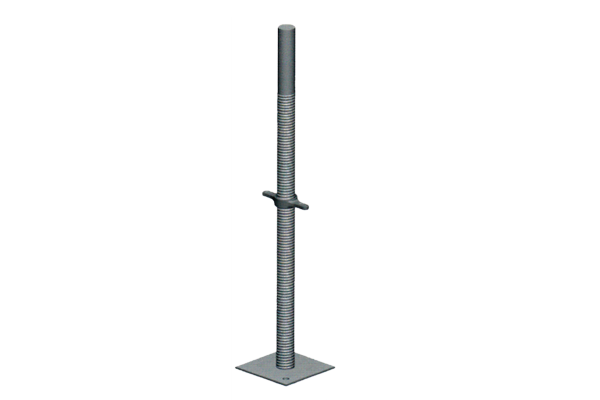

Adjustable Base Jack (Hollow Type)

Adjustable Base Jack (Solid Type)

Joint Pin

Hex Nut / Connector

Shuttering Clamp

Anchor Nut

Fencing Coupler

Prop Nut

Galvanized - Drop Forged Heavy Duty
